Airport/Factory/School/Station X Ray Luggage Scanner Machine With
High Sensitivity And Intelligent Photo System
General Specification
| Tunnel Size: | 650(W)×500(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 150kg |
| Conveyor Height: | 34cm |
| Wire Resolution: | 0.1mm metal line |
| Steel Penetration: | 34mm steel |
| Film Safety: | For ISO 1600 |
| Maximum leakage radiation : | <1µGY/h |
| Single inspection dosage: | < 1.5µGy |
X-ray Generator
1. Generate direct: Upward
2. Generate angle: 80 degree
3. Anode Voltage: 140Kv
4. Anode power: 0.3mA
5. Cooling / Duty Cycle: Oil Cooling /100%
Image System
1.X-ray Sensor: L-Shaped Photo diode Array (mono energetic) , 12bit Deep
2.Monitor High Resolution Color, LCD Accord, 17 inch
3.Detector: 2
4.Color display: full color
5.Image Processing:Edge enhancement, image strengthening, Image
lightening,
reducing darkening, image returning, image retrieval.
6.Image Grey Level: 4096
7.Image Max Resolution: 1024 * 1280 pixel
8.Image Processing: 24bit for processing real time
9.Image storage: Storage 60000 pictures in real time
10. Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole
screen
continuous observation
11. Multi-energetic distinguish objects:organic objects in orange,inorganic objects in
blue,mixture in green
12.High-energy/low energy: switch from high energy to low energy
13.Assist to detect drug and explosive powder
Installation Data:
1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
2.Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
3.Operation Power:220AVC/(±10)50Hz±3Hz
4.Power Consumption: 0.5KW
5.Noise: <55 dB

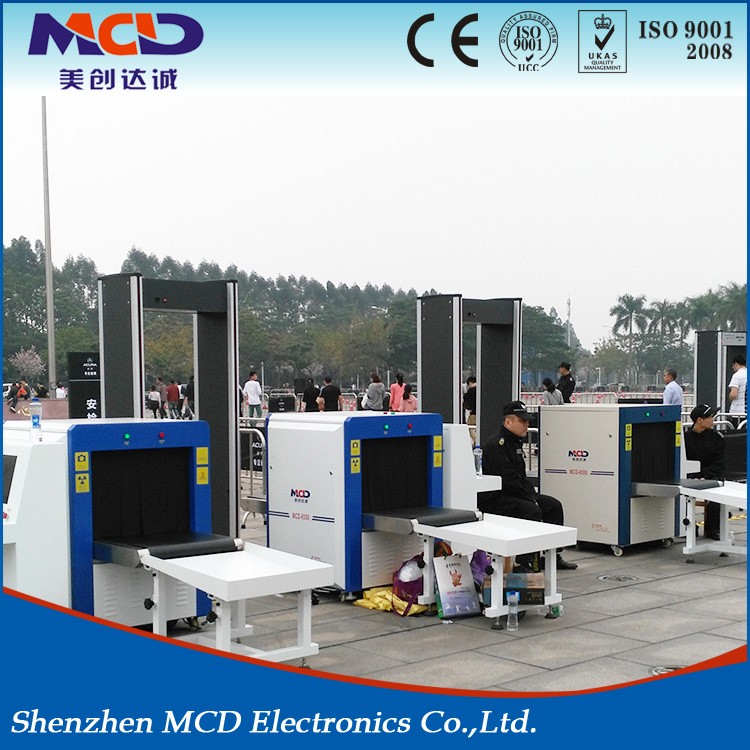

Feature and Application:
X-rays through inspection,Which show object interior metal
structure by LCD screen.Applied to factory inspection products and
institutions of the security. Such as electronic factory, shoe
factories, toy factories, court and station, as well as large
activities handbag security.
