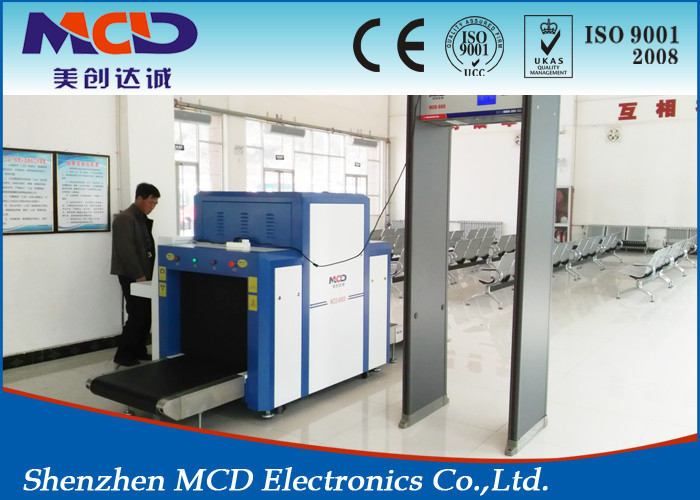

34mm Penetration 65x50cm X Ray Baggage Scanner With 150kg Load Belt

Feature

1. Alarm by sounds & light: Alarm by sounds and light when conform to condition.
2. Network interface: Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray: Transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly: The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
6. Turn off by a key control: Turn off the machine only need one step: Revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

Technical parameter

1. Tunnel Size: 650(W)*500(H)mm

2. Conveyor Speed: 0.22m/s

3. Conveyor Max Load: 170kg

4. Dose per Inspection: <1uGy/h

5. Resolution: <0.0787mm Metal Wire

6. Operation Power:220AVC/(±10)50Hz±3Hz

7. Power Consumption:0.65KW(Max)

8. Spatial resolution Level:dia0.1mm , Vertical:dia0.1mm

9. Penetration: 43mm Steel

10. Film Safety: Guarantee ISO1600 Film

11. X-ray Leakage: <0.05uGy/h (at a distance of 5cm From external housing)

12. Noise: ＜58 dB

X-ray generator

Orientation: Vertically upward
Tube current: 0.4~0.5ma(adjustable)
Anode voltage: 80 kv(adjustable)
Angle: 60
Generator cooling/working periods sealed oil bath with forced air/100%

Storage temperature: -20 degree to 60 degree

Application

Used in the factory testing of security products and business units such as: electronic factories,

shoe factories, toy factories, courts, railway stations, and event bag, line security management

package

Shenzhen MCD Electronics Co.,Ltd is a professional large-scale manufacturer of all kinds of metal detectors.integrating development and production together.our main products include hand held metal detector,walkthrough metal detector,under vehicle search mirror and related products.our company was established in 2005.and we have many years of history in security industry.Located near Shenzhen port.we enjoy convenient water,land and air transportation.

Our company employs more than 80 workers;through the efforts of our entire staff,we have become a big metal detector manufacturer.MCD people have continuously tried to improve product quality,introducing advanced technology.making our annual production capability is 3 million square meters of flooring.

Currently,MCD metal detector is already exported to Europe,Mid-East,North America and other countries and regions.our company has always focused on research,development and innovation,and has recently developed new auto-conveying metal detector.in 2009,we attained iso9000 management certification.

MCD will initiate the second phase of our development strategy.our company regards"reasonable prices,efficient production time and good after-sales service"as our tenet.we hope to cooperate with more customers for mutual development and benefits.
we welcome potential buyers to contact us.
