High Penetration Dual View X Ray Baggage Scanner For Large Package Bag Scanning100100

Ask Lasest Price
Brand Name :	MCD
Model Number :	MCD-100100
Certification :	CE ISO
Price :	Negotiable
Supply Ability :	200sets/month

Add to Cart

Product Details
Company Profile

High Penetration Dual View X Ray Baggage Scanner For Large Package Bag Scanning100100

High Penetration Dual View X Ray Baggage Scanner For Large Package Bag Scanning

Quick Details

Place of Origin:

China

Brand Name:

MCD

Type:

X ray Detector Conveyor

Warranty:

1 year

detection mode:

x-ray bottom shine detecting

tunnel size:

1000(W)*1000(H)mm

conveyor speed:

0.2m/s

steel penetration:

40mm metal line

Maximum leakage radiation:

<0.05uGy/h

System Power:

220AVC/50Hz

Power wastage:

1.0KW(Max)

Noise:

<65 dB

Packaging & Delivery

Selling Units:

Single item

Single package size:

260X140X215 cm

Single gross weight:

700.0 kg

Package Type:

X ray Detector Conveyor packing:
wooden case

General Specification
Tunnel size	1000 (W) *1000 (H) mm
Rated power	500W
Rated load	1000kg (evenly distributed)
Conveyor height	30CM
Transmission mode	Electric drum
Conveyor thickness	3.0mm
Transport speed	standard 0.2M/S, adjustable speed
Radiation direction	Top-illuminated
Penetration	40-43mm thick
Penetration resolution	34AWGΦ0.160mm
Line resolution	resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
Tube voltage / tube current	140KV 0.5mA
Leakage rate	<1.0μGy/h from the outer surface of the casing at 5CM
Single dose	radiation dose <1.5uGy
Net weight	600Kg
Product volume	366131195CM
Ray beam divergence angle	80 degrees
Equipment noise level	<55db
Pass rate	720 / h ~ 1500 / h
Leakage current	<0.5mA
Cooling	Sealed circulating oil cooled, 100
Work cycle	full cycle, need to be cooled
Rated voltage	AC 220V 50HZ (±10%)
Film Safety	ISO1600 Film Safety
Working temperature / humidity	-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
Storage temperature / humidity	-20 ° C ~ 60 ° C / 20% -95% (non-condensing)

Image processing system

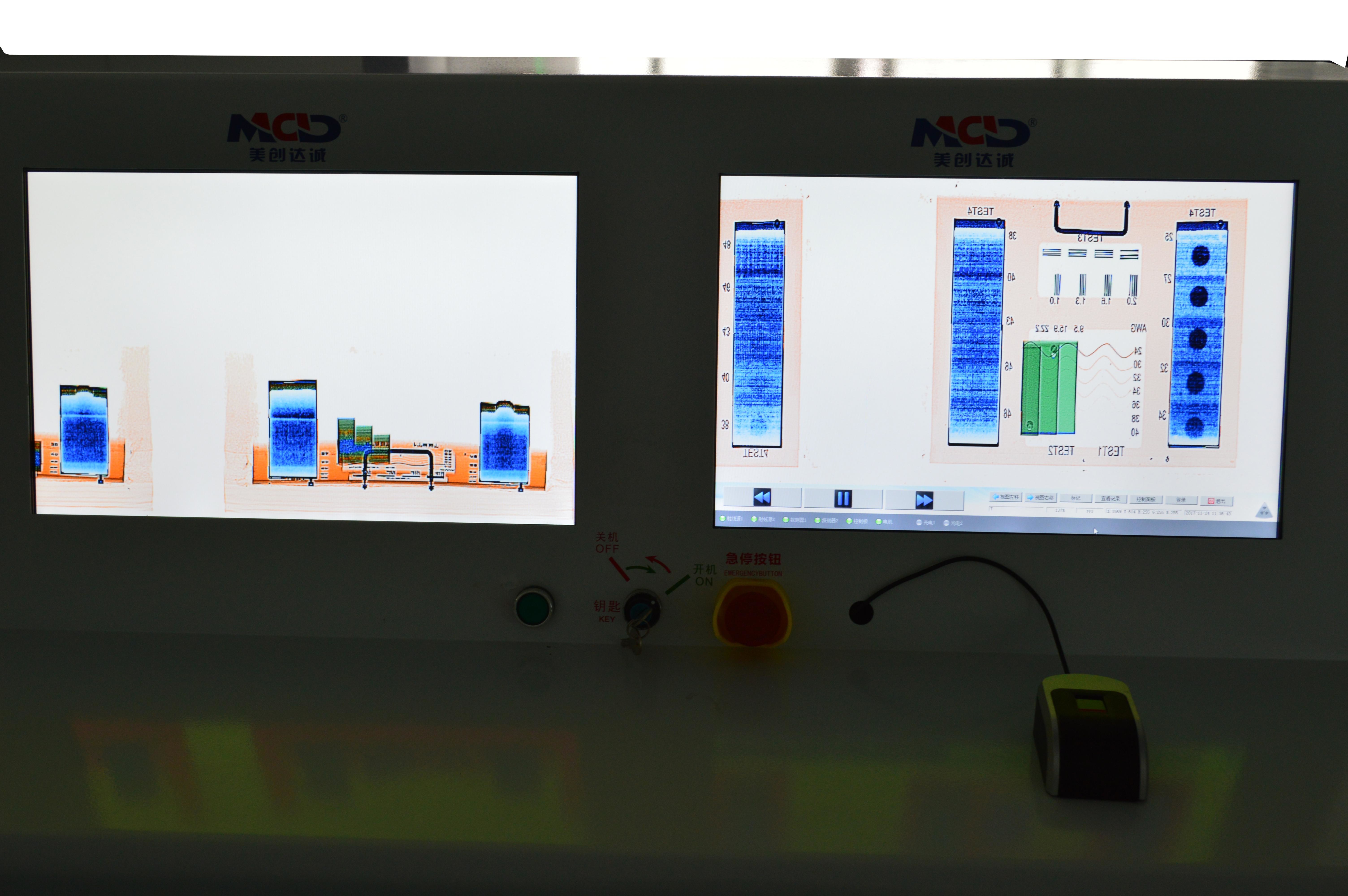

1. X-ray sensor: L-shaped photodiode array detector, 16bit accuracy 2. Multi-energy color: organic matter is displayed in orange, inorganic substance is displayed in blue, mixture is displayed in green, and unclear area is displayed in black. 3. High energy / low energy: two energy switching display 4. Hazardous materials assisted detection: assisting in the detection of dangerous goods such as some typical drug explosives 5. Independent console: easy to read, can be separated from the host by a maximum distance of 2.5m, 19-inch high- resolution display 6. Magnifying glass local zoom function, edge enhancement object contour edge is more clear, easy to penetrate, full screen imaging graphics without distortion 7. Adopt network port transmission technology to improve information transmission speed
