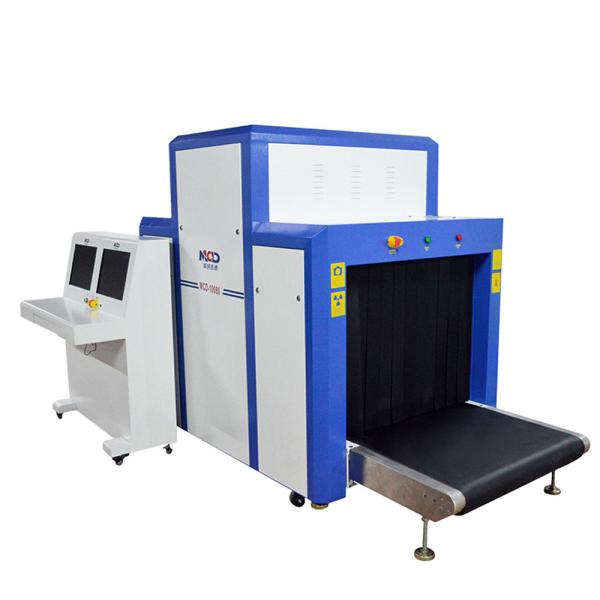

Professional X Ray Baggage Scanner Gun Metal Detector With Conveyor
Belt
Product Introduction :
Professional X Ray Baggage Scanner X-Ray top shine detect ,
1. For Explosives, Drugs, Threats & Duty Fraud
2. Ideal solution for screening baggage
3. Baggage scanner with x-ray tecnique
Product Features:
- General Specification
- Tunnel Size: 1000(W)*1000(H)mm
- Conveyor Speed.......0.22m/s
- Conveyor Max Load200kg
- Dose per Inspection< 1.6μGy/h
- Resolution< 0.0787mm Copper Wire
- Spatial resolutionLevel: dia1.3mm, Vertical: dia1.0mm
- Penetrate resolutionDia 0.511mm
- Penetration34mm Steel
- Film Safety:Guarantee ISO1600 Film
- X-ray Leakage<0.1μGy/h (at a distance of 5cm From external
housing)
X-ray Generator
Generate direct: Bottom to up
Generate anger: 80 degree
Anode Voltage100~160Kv
Anode power0.4 to 1.2mA
Cooling / Duty CycleOil Cooling /100%
Image System
X-ray SensorL-Shaped Photodiode Array (multi-energetic) , 12bit
Deep
MonitorHigh Resolution Color, LCD Accord, 17 inch
Image ProcessingEdge enhancement, image strengthening, image
lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level4096
Image Max Resolution:1024 * 1280 pixel
Image Processing24bit for processing real time
Image Storage :60000 pictures in real time
Zones & Zoom1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen
continuous observation
Multi-energetic distinguish objects organic objects in orange,
inorganic objects in blue, mixture in green
High-energy/low energe: switch from high energy to low energy
Assist to detect drug and explosive powder
Specification :
| model | MCD-100100 |
| Power wastage | 1.0KW(Max) |
| Noise | ＜58 dB |
| Operating Temperature | 0℃～45℃ |
| Storage Temperature | -20℃～60℃ |
