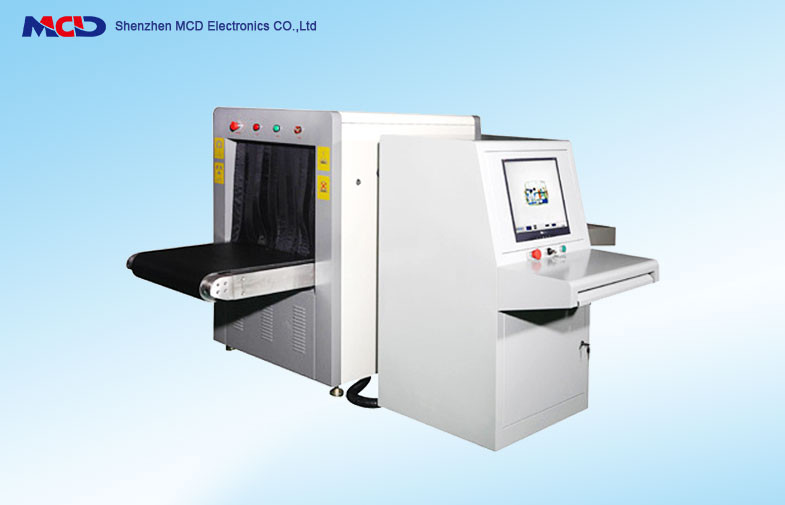

Airport Security X-ray Baggage Scanner Detector Machine MCD-6550

Feature :

Sound and light alarms

Network Interface: Can connect local area networks, multiple terminals can check luggage’s at the same time

Safer-ray: Ray fired automatic control, to avoid misusing launching.

Simple mouse control: can directly control the equipment without the keyboard and the working table.

One shutdown control button: You just need to rotate the key and the equipment will automatic power off safely, no need for complex multi-step operation, more convenient and simpler.

Eagle Eye: Current region can be reviewed conviently in enlarged status.

Fault self-diagnosis: Automatically determine the failure and give prompt information, easy to maintain.

Parameters:

Tunnel Size: 650 (wide) × 500 (high) mm

Conveyor speed: 0.2 m / s.

Conveyor Max load: 50kg

Single inspection dosage: <1.5μGy

Wire Resolution: 0.101mm metal line

Steel Penetration: 34mm armor plate

Film safety: For ISO1600

Maximum leakage radiation: <0.05µGy/h

X-ray generator:

Orientation:Vertically Upward

Tube current: 0.4 ~ 1.2mA (adjustable)

Anode voltage: 100 ~ 160 kV (adjustable)

Angle: 60 °

Generayor Cooling/working periods; Sealed oil with forced air/100%

Operation environment:

Storage temperature:-20 °C to 60 °C

Operating Temperature: 0 °C to 45 °C

Relative Humidity: 20 to 95% non-condensing

System power: 220VAC (± 10%) 50 ± 3Hz

Power wastage: 1.0KW (Maximum)

Noise : <65DB
