Fast Pass Walk Through Temperature Scanner Big Screen Voice Alert
High Accuracy
Big Screen AC 220V Walk Through Temperature Scanner Voice Alert
Features:
1. Accuracy: ± 0.2 ° C.
Response time: 1 second, passing rate is about 50-60 people / min.

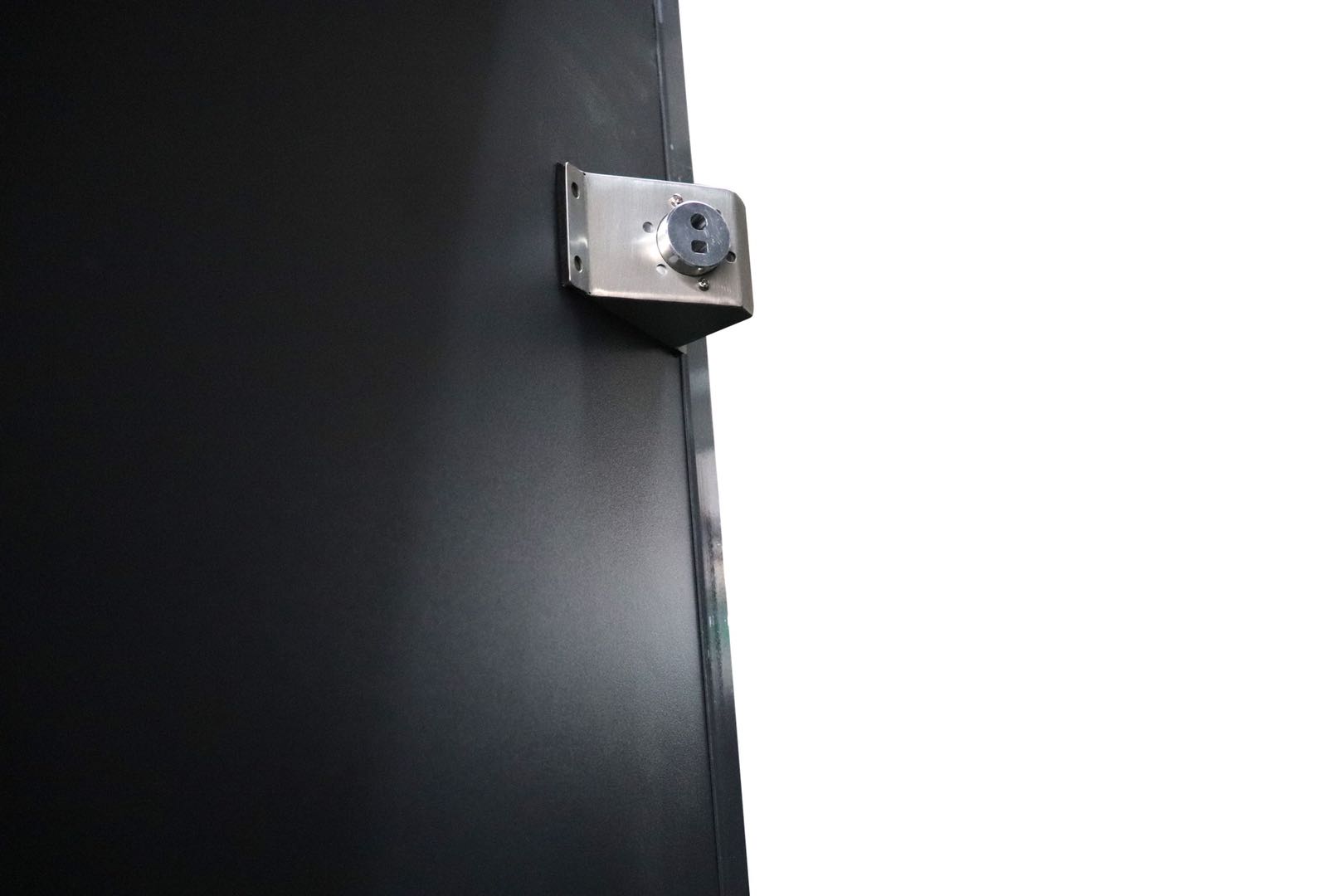

2. Temperature measurement detection area: the imported medical
double probe technology is adopted, which is the first in the
industry to install one probe at the left rear and one probe at the
inner inclined edge of the right front door, fully covering the
area range of 0.5m * 0.5m at the right front of the door frame and
0.5m * 0.5m at the left rear of the door body. Through the
acceptable cost of enterprises and institutions, the natural
traffic speed close to infrared thermal imaging can be realized.
3. Alarm mode: voice alarm, real-time display of body temperature.
4. Intelligent statistics: the intelligent passenger flow and alarm
counting function can automatically count the number of people
passing and the number of alarms.
5.The 7-inch screen displays real-time body temperature and records
the number of people tested.
6. Only temperature detect, without metal detector
Power supply: AC220/50Hz
Power Consumption: Less 35W
Operation Temperature: -10℃ to +45℃
7.Technical index
| Product name | Fast Pass Walthrough Body Temperature Door |
| Operation Temperature | -10℃ to +45℃ |
| Measuring distance | Fast Pass |
| Display | 7 inch screen |
| Function | Only temperature detect, without metal detector |
| Feature | Three Color Backlight, Fast Response(0.5 Second),Automatic
Shutdown(15 Seconds) |
| Pass Size | 2000*700*500mm |
| Weight/Packing Weight | 58kg/58kg |
| Package size | 230*73*25cm(Main body) 78*47*28cm(Host machine) |
| Response time: | 1 second |
| Power supply | AC220/50Hz |
| Power Consumption | Less 35W |
| Alarm mode | voice alarm |
| Certification | CE,ROHS,BSCI,ISO9001 |
| Internet port | Connect with computer |
Wooden box need extra fee .
