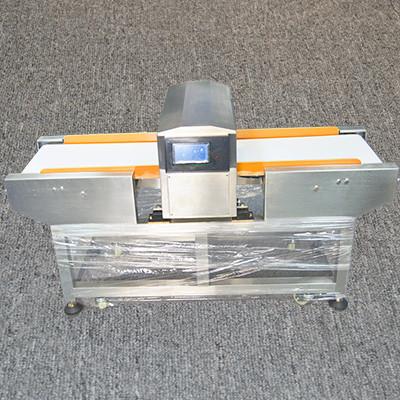

    Dry Goods Digital Food Metal Detector

    Ask Lasest Price
    Brand Name : MCD
    Model Number : MCD-F500QD
    Certification : ISO , CE
    Price : Negotiable
    Payment Terms : T/T , Western Union , L/C
    Supply Ability : 100 set/month
    Delivery Time : Normally within 5 working days
    • Product Details
    • Company Profile

    Dry Goods Digital Food Metal Detector

    Dry GoodsDigital Food Metal Detector


    Quick detail:

    • 6 inches of digital circuit touch blue LCD display
    • Detecting Method : Magnetic induction detection
    • Detecting Sensitivity : 0.6mm-3.0mm(Fe) , 1.2mm-5.0mm (SUS)
    • Alarm Method : Buzzer LED indicator twinkles and shutdown automatically
    • Detecting width : 30-120CM
    • Detecting height : 6-97CM
    • Sensitivity adjust : 0-9 Level
    • Conveyor Belt Speed : 25m/min
    • Power Supply : AC100-265V , 50-60Hz
    • Dimension size : (150-170)cm(L) * (80-90)cm(W) * (85-120)cm(H) (Demand can be made)

    metal detector parameters :


    Model

    Detecting height(cm)

    Detecting width(cm)

    Sensitivity(mm)

    Belt Size(cm)
    FeSUSLengthWidth

    MCD-F500QD-09

    630Φ0.6Φ1.225828
    MCD-F500QD-12930Φ0.7Φ1.525828
    MCD-F500QD-151240Φ0.8Φ1.5-Φ2.025838
    MCD-F500QD-201740Φ1.0-Φ1.25Φ2.0-Φ2.525838
    MCD-F500QD-252250Φ1.5-Φ2.0Φ3.0-Φ4.033048
    MCD-F500QD-302750Φ2.5-Φ3.0Φ5.0-Φ6.033048
    MCD-F500QD-353260Φ3.0-Φ3.5Φ6.0-Φ7.033058
    MCD-F500QD-403760Φ3.5-Φ4.0Φ7.0-Φ8.033058
    MCD-F500QD-454270Φ4.0-Φ4.5Φ8.0-Φ9.033068
    MCD-F500QD-504770Φ4.5-Φ5.0Φ9.0-Φ10.039068
    MCD-F500QD-555280Φ5.0-Φ5.5Φ10.0-Φ11.039078
    MCD-F500QD-605780Φ5.5-Φ6.0Φ11.0-Φ12.039078
    MCD-F500QD-656290Φ6.0-Φ6.5Φ12.0-Φ13.039088
    MCD-F500QD-706790Φ6.5-Φ7.0Φ13.0-Φ14.039088
    MCD-F500QD-7572100Φ7.0-Φ7.5Φ14.0-Φ15.045098
    MCD-F500QD-8077100Φ7.5-Φ8.0Φ15.0-Φ16.045098
    MCD-F500QD-8582110Φ8.0-Φ8.5Φ16.0-Φ17.0450108
    MCD-F500QD-9087110Φ8.5-Φ9.0Φ17.0-Φ18.0450108
    MCD-F500QD-9592120Φ9.0-Φ9.5Φ18.0-Φ19.0450118
    MCD-F500QD-10097120Φ9.5-Φ10.0Φ19.0-Φ20.0450118

    Remarks: it can't detecting aluminum foil and oxidizing agent , And other additional features should be customized, such as: infrared control, automatic rejecting device, foot switch, alarm indicator, control device, etc


    Description:


    1. It can detect ferrous and non-ferrous and other metal objects , the sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material
    2. Detector with audible and visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen . Machine made of stainless steel , anti-corrosion , no rust , easy to clean up
    3. Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material.
    4. Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.
    5. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
    6. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
    7. Can use with production line

    Feature and Applications:


    Making the outside shape beautiful and makes the weight of the machine light to adopt the ABS shell of

    good quality ,Equippped with the auto-alarm and auto-return device, it is featured by powerful by powerful

    anti-magnetic disturbance capability, and sensitivity, be used in food , medicine ,and toys

    detector of metal inside
