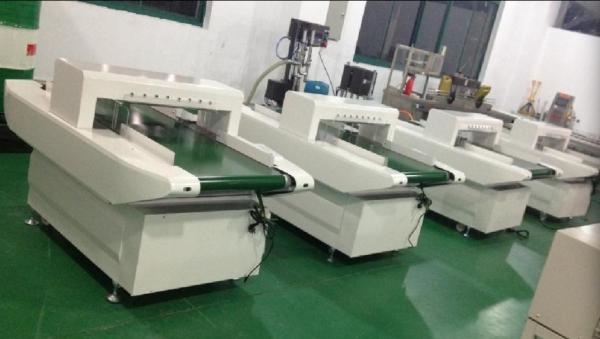

Stainless Steel Conveyor Belt Metal Detector , Magnetic Bra Metal
Detection
Detailed Product Description
2014 popular food metal detector MCD-F02 with stainless steel
material,In the principle of using magnetic, textiles, toys residual broken
needle.To meet the safety requirements.
Feature and Application:
1. High sensitivity and strong interference immunity.
2. Light structure and move conveniently.
3. Various of specifications of inspection window which can be
chosen at will according to customers' needs
4. Quick conveying speed, applicable to pipeline operation.
5. Matches the pipeline operation or automatic control device.
Quick detail
- Apply self-developed patent technology.
- Equipped with latest microchip , reliable with excellent
performance.
- Sensitive and anti-jamming.
- Automatically digital signal processing through the whole process.
- Easy operate , history data can be processed and saved
automatically before system switched off.
- Self-designed high-frequency power switch.
- Integrated and optimized design for reducing components , replaced
electronic system by computer control , lower malfunction.
- Microcomputer controlled motor to extend working life.
- Precise counter device.
Detecting Sensitivity: | diameter 0.8 mm to 2.5mm iron ball |
Sensitivity adjust: | 1-10 level |
Detecting Width: | 60cm |
Detecting Height: | 10-30cm |
Alarm method: | Buzzer,Lamp |
Conveying speed: | 24m/min(50Hz),32m/min(60Hz) |
Power: | AC220V |
Rated Output: | 60W |
Body size: | 185cm(L)*105cm(W)*95cm(H) |
Application:
Mainly used for detecting ferrous metal that load or drop in raw
materials and products in the field of toy,
costume, shoemaking, chemical industry, leather, knittingetc.
Clothes, textile, bra, baby products, shoes, socks, gloves, etc
detection lost pin and scrap
iron kind of impurities in the products., ensure product without
iron impurity pollution,
supply reliable quality guarantee.
