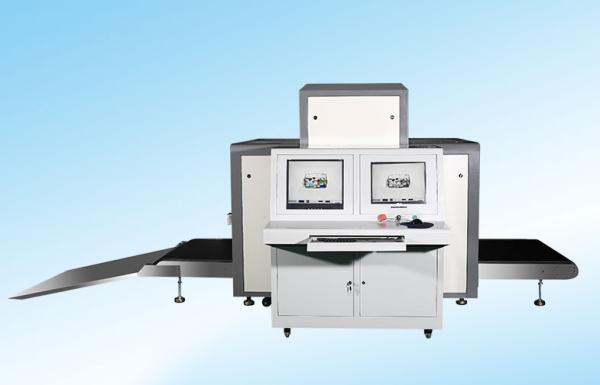

General Specification of x-ray scanner equipment:

Tunnel Size: 1000(W)*800(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 200kg

Dose per Inspection<1.7μGy/h

Resolution< 0.101mm Copper Wire

Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm

Penetrate resolution: Dia 0.511mm

Penetration: 34mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator of x-ray scanner equipment

Generate direct: Downward

Generate anger: 80 degree

Anode Voltage: 100~160Kv

Anode power: 0.4 to 1.2mA

Cooling / Duty Cycle: Oil Cooling /100%

Image System of x-ray scanner equipment

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level: 4096

Image Max Resolution: 1024 * 1280pixel

Image Processing: 24bit for processing real time

Image storage: Storage 60000 pictures in real time

Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energy : switch from high energy to low energy

Assist to detect drug and explosive powder

Installation Data of x-ray scanner equipment

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 220VAC(±10%)50±3Hz

Power Consumption: 1.0 KW (max), 1.0KW(working)

Noise: <58db

Shenzhen MCD Electronics Co.,Ltd is a professional large-scale manufacturer of all kinds of metal detectors.integrating development and production together.our main products include hand held metal detector,walkthrough metal detector,under vehicle search mirror and related products.our company was established in 2005.and we have many years of history in security industry.Located near Shenzhen port.we enjoy convenient water,land and air transportation.

Our company employs more than 80 workers;through the efforts of our entire staff,we have become a big metal detector manufacturer.MCD people have continuously tried to improve product quality,introducing advanced technology.making our annual production capability is 3 million square meters of flooring.

Currently,MCD metal detector is already exported to Europe,Mid-East,North America and other countries and regions.our company has always focused on research,development and innovation,and has recently developed new auto-conveying metal detector.in 2009,we attained iso9000 management certification.

MCD will initiate the second phase of our development strategy.our company regards"reasonable prices,efficient production time and good after-sales service"as our tenet.we hope to cooperate with more customers for mutual development and benefits.
we welcome potential buyers to contact us.
