3 x 6 Cells 18 Zone Archway Metal Detector , Single Line LCD
display
Quick Detail :
- 18 detecting zones (3*6 cells)
- Single-line of LCD display
- 200(L)*70(W)*56(H) cm tunnel size
- 0-99 adjustable sensitivity
- 1 year warranty
- with 10 year experience in this field
- a large security equipment manufactuer
Product Introduction:

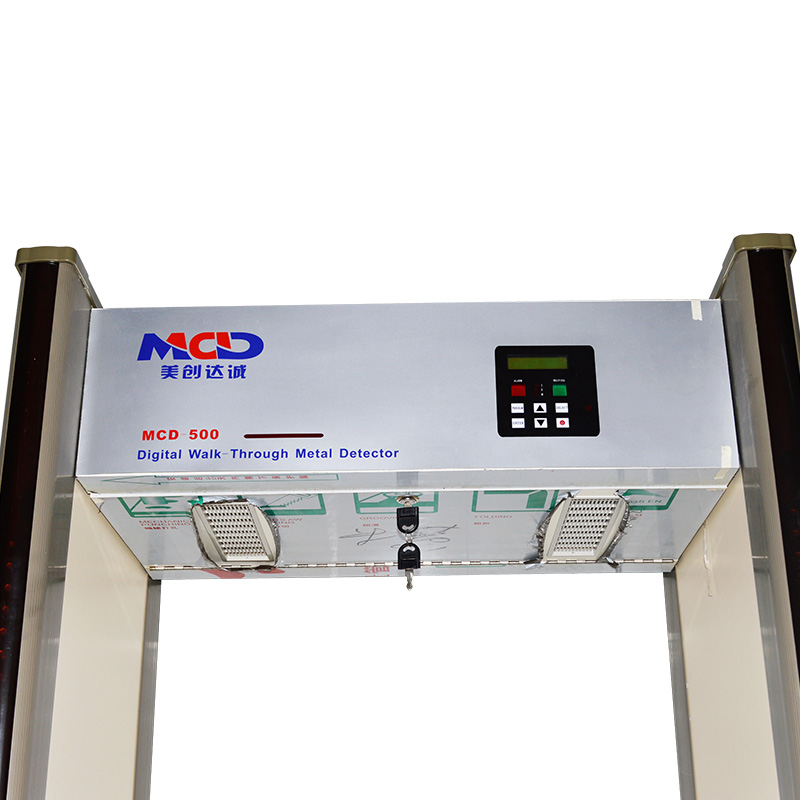

MCD-500C metal detector has 18 exploration areas, six independent
explorations around
the area, six complex explorations area in the middle of detection door. Besides it support
remote control, and it can be controlled in front of the front door with LED within
50 meters.
It has a four column alarm region with built in ultrahigh LED
panels that can display the place of
objective. The sensitivity of every area can be adjusted
independently from 0-99, and prevents
interference of scheduled metal.Besides the counting statistics features is based on intelligent
traffic and police counter statistics function and calculated
through the volume and frequency of
alarm. And it owns a password protection function, which makes the
operation safer.
Product Parameters:
| Alarm way: | Audio Alert,and LED Location lamp work at same time . |
| Detection Zone: | 18 zone |
| Display ways: | Single-line of LCD display |
| Sensitivity: | 0-99 adjustable |
| Tunnel Size: | 200(L)*70(W)*56(H)cm |
| Dimension: | 222(L)*82(W)*67(H)cm |
| Net Weight: | 54.5kg/set |
| Gross Weight: | 65.kg/set |
| Water Function: | The main body with waterproof function |
| Package Size: | Main Body: 230*72*25cm(2 piece /carton) Host Machine:78*47*28cm(1 piece/carton) |
Feature and Application:
Fireproof,waterproof ,and shockproof.multi-zone alarm.LCD display,
totally English Menu,
this type door can prestore 3 type different model ,This detector
door divide people with 18 zone ,
better sensitivity.Apply for need high sensitivity Exhibition Areas
for both indoor and outdoor check,
such as hardware and Electronic manufacturer check if the person
steal the metals,
or Apply for large public Events, check the person if take leather
weapon.
it is very suitable for exports
MCD-500C
User Manual.pdf
MCD-500C
walkthrough metal decetor.pdf
