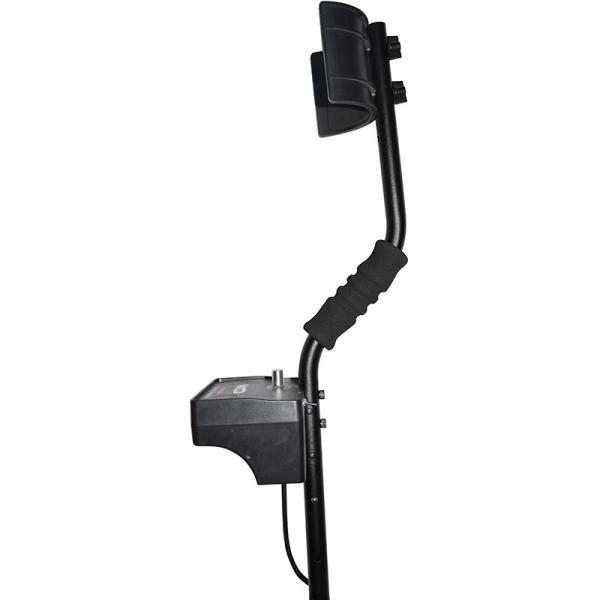

Good-Quality High-Performance Under Vehicle Search Camera MCD-V7D
Waterproof Camera
- Lens visible angle: 120 degrees
- Camera adjustable angle: Arbitrary angle
- Camera light source: 12 LEDs
- Storage way: DVR video recording function,can storage image
- Waterproof standard: IP68
- Rod Max length: 1.16m
- Working temperature:-10℃-50℃ 2.4G/5.8G Wireless Mini DVR ( 5 inch
Screen )
Shenzhen MCD Electronics Co.,Ltd. is a large-scale security
equipment manufacturer, which interprets R&D, manufacturing and
marketing together.Founded in 2005, MCD mainly concentrated on
developing Metal Detector, Electronic Article Surveillance(ESA)
devices, Food Packaging Testers, X-Ray Package Checkers, Under
Vehicle Inspection Equipments, Explosion-proof equipments ect. Our
products include Walk through Metal Detector Doors, Underground
Metal Detectors, Handheld Metal Detectors, ESA for supermarkets
andlibraries, Needle Detection Machines, X-ray Inspection
equipments, Under Vehicle Inspection Mirrors, ect.
Basic Information:
- Wireless Receiving : Built-in 2.4G/5.8G wireless receiving module
- Channel Switch Supports manual & automatic switch between 8
channels
- Antenna: Folding hidden external antenna assures excellent wireless
receiving.
- Recording: Supports seamless cycle and continuous video from
wired/wireless cameras
- Photo :Supports function of taking pictures either from wired or
wireless cameras.
- AV IN:TV-IN [NTSC / PAL]
- AV OUT:[NTSC / PAL].
- Battery: Built-in 3200mAh high capacity Li-battery, which
continuous record over 10 hours
- Speaker: Built-in speaker of 1W
- Storage: Supports up to 32GB TF card
Specification:
Items | Value |
Wireless Receiving | Wireless freq. 1of 6 groups | 2.4GHz–8 channels | CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz |
Within 5.8G-A 8 channels | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
Beyond 5.8G-B 8 channels | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz |
Within 5.8G-C 8 channels | CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz |
Within 5.8G-D 7channels for FPV | CH1: 5740MHz; CH2: 5760MHz; CH3: 5780MHz; CH4: 5800MHz. CH5: 5820MHz; CH6: 5840MHz; CH7: 5860MHz; CH8: SPI |
Beyond 5.8G-E 7 channels for FPV | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: SPI |
Sensitivity | -92dB |
AV IN | TV system | NTSC / PAL |
Output voltage | 3.6-4.2 V |
AV OUT | TV system | NTSC / PAL |
HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
Resolution | 800 X 480 Pixel |
Luminance for LCM | 200 cd/㎡ |
Video | Resolution | 720*576 / 720*480 |
Video compress | MPEG-AVI 30fps |
Play format | MPEG-AV |
Items | Value |
Audio | Subcarrier frequency | 2.4GHz:6.0MHz; 5.8G-A/B/C:6.5MHz; 5.8G-D/E:6.0/6.5MHz |
Earphone Frequency Range | 20HZ-20KHz stereo |
Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) |
Speaker | 1W |
Photo | Format | JPG/JPEG |
Storage | External SD card | TF card 1GB-32GB(optional) |
32GB recording time | 10-32 hours |
1GB photos | 15625pcs |
Operating system | PC | Windows & Mac OS |
Port | USB 2.0 |
Language | Multiple |
Power | Voltage | DC 5V |
Current(receiving mode) | 660MA |
Current( recording mode) | 680MA |
Current(recording with off-screen mode) | 340MA |
AC adapter | DC 5V 2A |
Built-in battery | Li-battery 3200Mah |
Standby time | Wireless record | ≥9.5 hours(off-screen); ≥5hours(on-screen) |
Wired record | ≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included. |
Size (L x W x H) | 131mm x 86mm x 18mm |
Weight(g) | 205g |
Feature and Application:
It is our latest developed HD video searching system , with
state-of-art innovation technology.
It helps security personal to check clearly on front Video
displaying the spaces where is narrow,
dark which cannot be reached by naked eyes, it will simplify
troublesome inspection work and
save plenty of valuable time, improving security check efficiency.
