Gov Hotel Station Security Xray Baggage Scanner System High Sensitivity

Product Parameters:

General Specification

• 1.Tunnel Size:1000(W)*800(H)mm
• 2.Conveyor Speed:0.22m/s
• 3.Conveyor Max Load:200kg
• 4.Dose per Inspection:＜1.7uGy/h
• 5Wire Resolution:＜0.101mm Metal Wire
• 6.Spatial Resolution:level:Ф1.3 mm Vertical:Ф1.0 mm
• 7.Through Resolution:Ф0.254 mm
• 8.Penetration:40mm Steel
• 9.Film Safety: Guarantee ISO1600 Film
• 10.X-ray Leakage:＜0.1uGy/h (at a distance of 5cm from external housing)

X-ray Generator

• 1.Generate Direct: Downward
• 2.Generate Angle:80degree
• 3.Anode Voltage:100-160Kv
• 4.Anode Power:0.4 to 1.2 MA
• 5.Cooling/Duty Cycle:Oil Cooling/100%

Image System

• 1.X-ray Sensor: L-Shaped Photodiode Array(monoenergetic),12 bit Deep
• 2.Monitor:High Resolution Color,LCD Accord,17 inch
• 3.Image Processing: Edge enhancement, Image Strengthening,Image Lighting, Reducing Darkening, Image Returning, Image Retrieval.
• 3.Image Grey Level:4096
• 4.Image Max Resolution:1024*1280 pixel
• 5.Image Processing:24bit for processing real time
• 6.Image storage: Storage 60000 pictures in real time
• 7.Zones&Zoom:1-9 image regions,2,4,8,16 Times Enlarge,Whole Screen Contiunous Observation

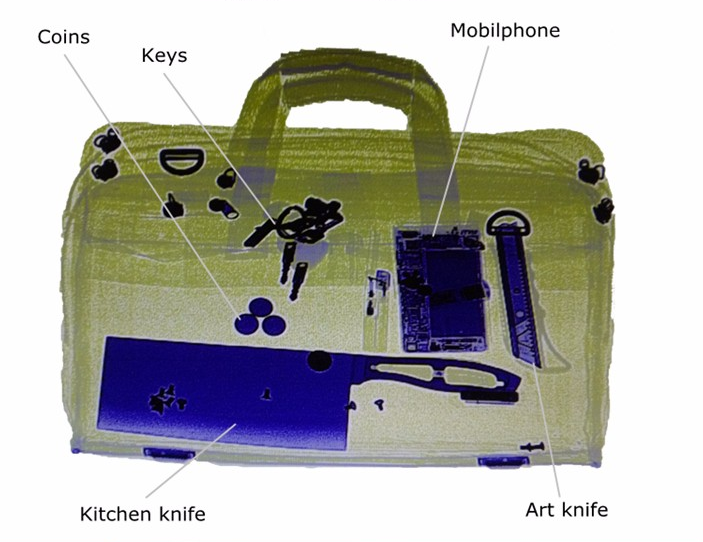

• 8.Multi-energetic Distinguish Objects: Organic objects in orange,inorganic objects in blue, mixture in green
• 9.High-energy/low energy: switch from high energy to low energy
• 10.Assist to detect drug and explosive powder

Installation Data

• 1.Operation Temperature/Humidity:0℃～45℃/20%-95%(non-condensing)
• 2.Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
• 3.Operation Power:220VAC(±10%)50±3Hz
• 4.Power Wastage: 1.0KW(max),1.0KW(working.)
• 5.Noise: <58dB

Feature and Application:

X-Ray security machine is mainly used to detect small pieces of goods ,parcels ,packages ,suitcases ,backpacks and other hidden contraband in objects, and so on able on detect hidden foreign bodies in a variety of packaging products, Widely used in : airport , subway station , factories , museums , embassies ,customs ,Food industry , pharmaceutical industry , textile industry .
