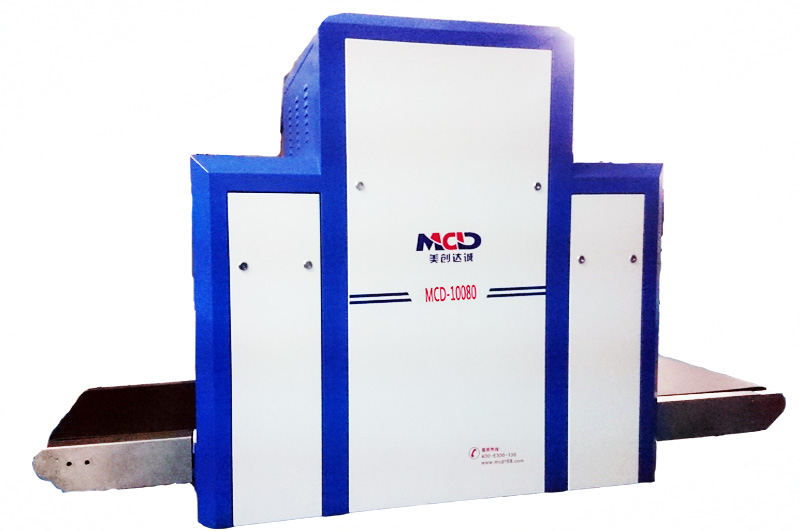

Checking Cargo X Ray Scanner Security X Ray Machine Inspection
0.22m / S
Product Parameters:
General Specification
1.Tunnel Size:1000(W)*800(H)mm
2.Conveyor Speed:0.22m/s
3.Conveyor Max Load:200kg
4.Dose per Inspection:＜1.7uGy/h
5Wire Resolution:＜0.101mm Metal Wire
6.Spatial Resolution:level:Ф1.3 mm Vertical:Ф1.0 mm
7.Through Resolution:Ф0.254 mm
8.Penetration:40mm Steel
9.Film Safety: Guarantee ISO1600 Film
10.X-ray Leakage:＜0.1uGy/h (at a distance of 5cm from external
housing)
X-ray Generator
1.Generate Direct: Downward
2.Generate Angle:80degree
3.Anode Voltage:100-160Kv
4.Anode Power:0.4 to 1.2 MA
5.Cooling/Duty Cycle:Oil Cooling/100%
Image System
1.X-ray Sensor: L-Shaped Photodiode Array(monoenergetic),12 bit
Deep
2.Monitor:High Resolution Color,LCD Accord,17 inch
3.Image Processing: Edge enhancement, Image Strengthening,
Image Lighting, Reducing Darkening, Image Returning, Image
Retrieval.
3.Image Grey Level:4096
4.Image Max Resolution:1024*1280 pixel
5.Image Processing:24bit for processing real time
6.Image storage: Storage 60000 pictures in real time
7.Zones&Zoom:1-9 image regions,2,4,8,16 Times Enlarge,
Whole Screen Contiunous Observation

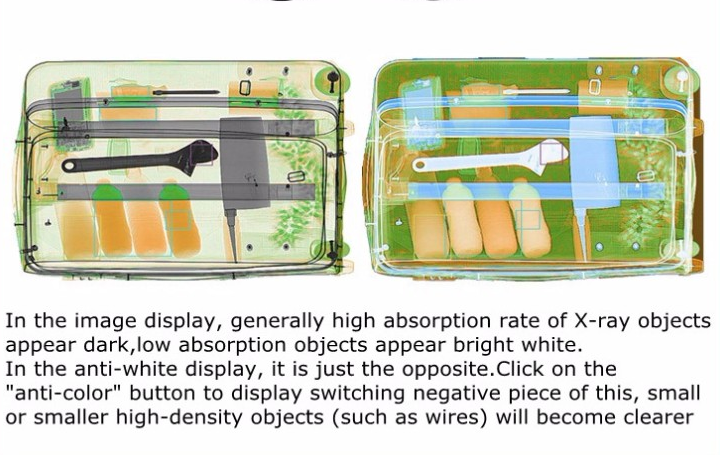

8.Multi-energetic Distinguish Objects: Organic objects in orange,
inorganic objects in blue, mixture in green
9.High-energy/low energy: switch from high energy to low energy
10.Assist to detect drug and explosive powder
Installation Data
1.Operation Temperature/Humidity:0℃～45℃/20%-95%(non-condensing)
2.Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
3.Operation Power:220VAC(±10%)50±3Hz
4.Power Wastage: 1.0KW(max),1.0KW(working.)
5.Noise: <58dB
Feature and Application:
X-Ray security machine is mainly used to detect small pieces of
goods ,
parcels ,packages ,suitcases ,backpacks and other hidden contraband
in objects, and so on able on detect hidden foreign bodies in a
variety of packaging products, Widely used in : airport , subway
station , factories , museums , embassies , customs ,Food industry
, pharmaceutical industry , textile industry .
