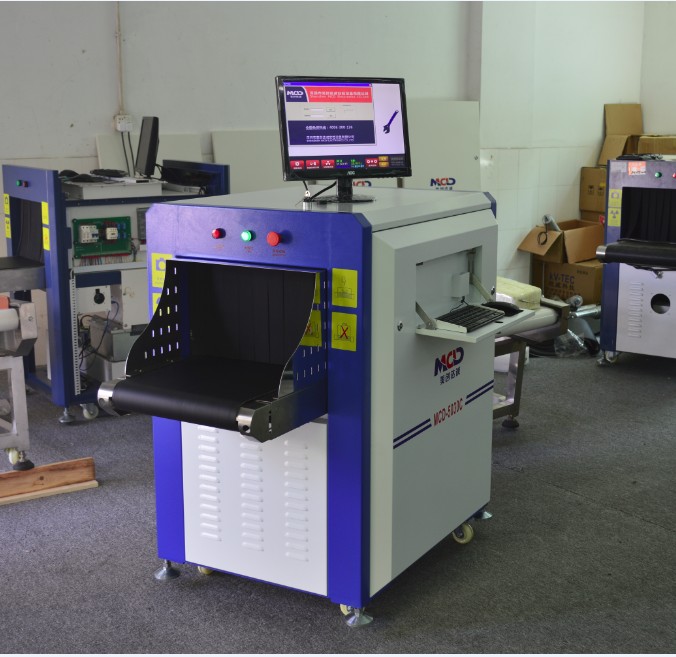

X-ray Security Inspection Equipments Baggage Detector Machine
Prices
Specification :
Name | MCD-5030C |
Type | X-ray Scanner |
Tunnel Size | 500(W)*300(H)mm |
Power Supply | 220V |
Power Consumption | 1.0 KW (max) |
Penetration | 8mm Steel |
Operating Temperature | 0C° to +45C° |
Size | 1650(L) ×725(W) × 1200(H)mm |
MOQ | 1 set |
Weight | 400kg |
Warranty | 1 year |
Package | One piece is packed in wooden case |
Delivery | within seven working days after payment confirmed |
Product Parameters:
General Specification
1.Tunnel Size: 500(W)*300(H)mm
2.Conveyor Speed: 0.22m/s
3.Conveyor Max Load: 170kg
4.Dose per Inspection: <2.9 uGy/h
5.Resolution: <0.101mmMetal Wire
6.Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm
7.Through resolution:φ0.202mm
8.Penetration: 8mm Steel
9.Film Safety: Guarantee ISO1600 Film
10.X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external
housing)
X-ray Generator
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 80Kv
4.Anode power: 0.4 to 0.5mA
5.Cooling / Duty Cycle: Oil Cooling /100%
Image System
1.X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit
Deep
2.Monitor: High Resolution Color, LCD Accord, 17 inch
3.Detector:2
4.Color display:full color
5.Image Processing: Edge enhancement, image strengthening,
Image lightening, reducing darkening, image returning, image retrieval.
6.Image Grey Level: 4096
7.Image Max Resolution: 1024 * 1280 pixel
8.Image Processing: 24bit for processing real time
9.Image storage: Storage 60000 pictures in real time
10.Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole
screen
continuous observation
11.Multi-energetic distinguish objects: organic objects in
orange,inorganic objects in blue,
mixture in green
Installation Data
1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
2.Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
3.Operation Power:220AVC/(±10)50Hz±3Hz
4.Power Consumption:1.0KW(Max),0.3KW(working)
5.Noise: <55 dB
Feature and Application:
X-rays through inspection,Which show object interior metal
structure by LCD screen.Applied to
factory inspection products and institutions of the security. Such
as electronic factory,
shoe factories, toy factories, court and station, as well as large activities handbag security.
