18 Zones Scanner Metal Detector Equipment Security Alarm System
Body Scanning
Product Introduction:

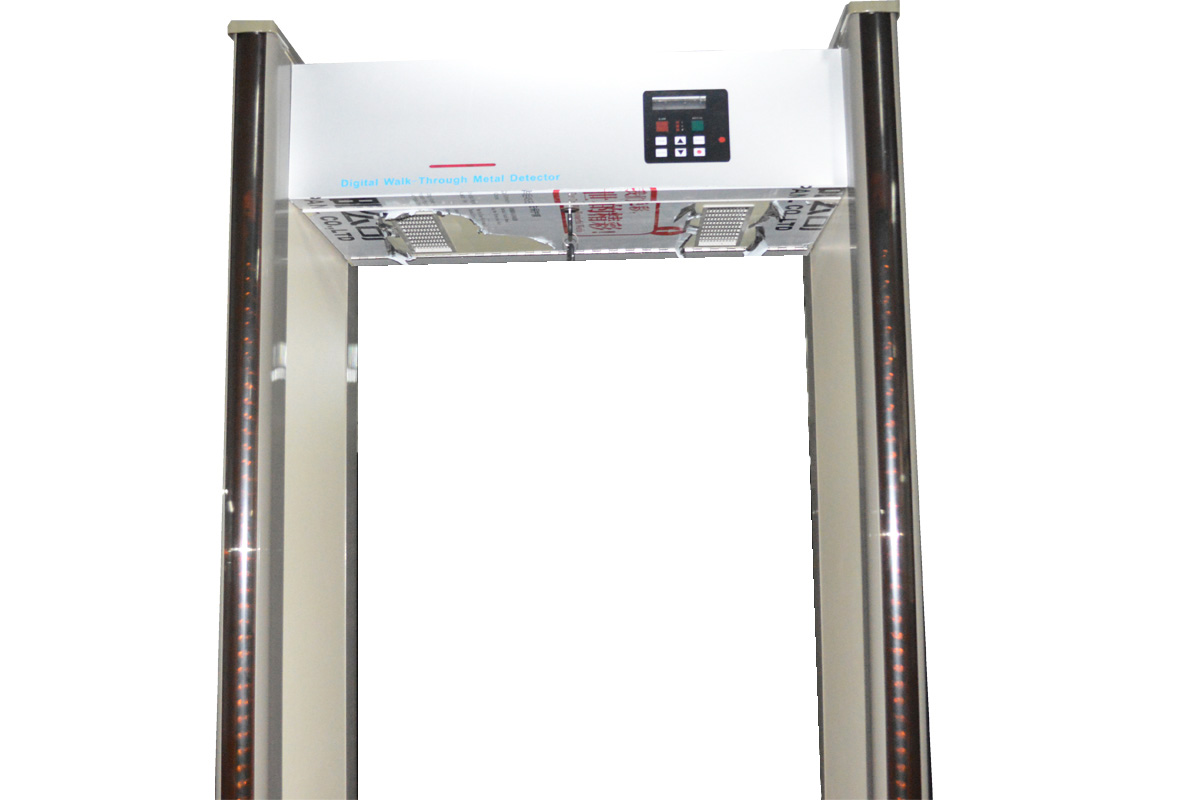

MCD-500C metal detector has 18 exploration areas, six independent
explorations around the area, six complex explorations area in the
middle of detection door. Besides it support remote control, and it
can be controlled in front of the front door with LED within 50
meters. It has a four column alarm region with built in ultrahigh
LED panels that can display the place of objective. The sensitivity
of every area can be adjusted independently from 0-99, and prevents
interference of scheduled metal.Besides the counting statistics
,features is based on intelligent traffic and police counter
statistics function and calculated through the volume and frequency
of alarm. And it owns a password protection function, which makes
the operation safer.
Product Parameters:
1.Detector zone : 18 zones
2.Sensitivity : 0 to 99 sensitivity can be adjusted
3.Display way:Two LED door sides alarm light Single Line LCD Screen
Panels
4.Alarm way: Audio Alert,and LED Location lamp work at the same
time .
5.Waterproof, Shakeproof, fireproof
6. With remote control, easy operate
7.Power supply: AC220/50Hz
8.Power Consumption: Less 35W
9.Operation Temperature: -10℃ to +45℃
10.Tunnel Size:200(L)*70(W)*56(H)cm
11.Dimension:222(L)*82(W)*67(H)cm
12.Net Weight:54.5kg/set Gross Weight: 65.kg/set
13.Package Size: Main Body: 230*72*25cm(2 piece /carton)
Host Machine:78*47*28cm(1 piece/carton)
Feature and Application:
Fireproof,waterproof ,and shockproof.multi-zone alarm.LCD display,
totally English Menu,this type door can prestore 3 type different
model ,This detector door divide people with 18 zone ,better
sensitivity.Apply for need high sensitivity Exhibition Areas for
both indoor and outdoor check,such as hardware and Electronic
manufacturer check if the person steal the metals,or Apply for
large public Events, check the person if take leather weapon.it is
very suitable for exports
MCD-500C
walkthrough metal decetor.pdf
MCD-500C
User Manual.pdf
