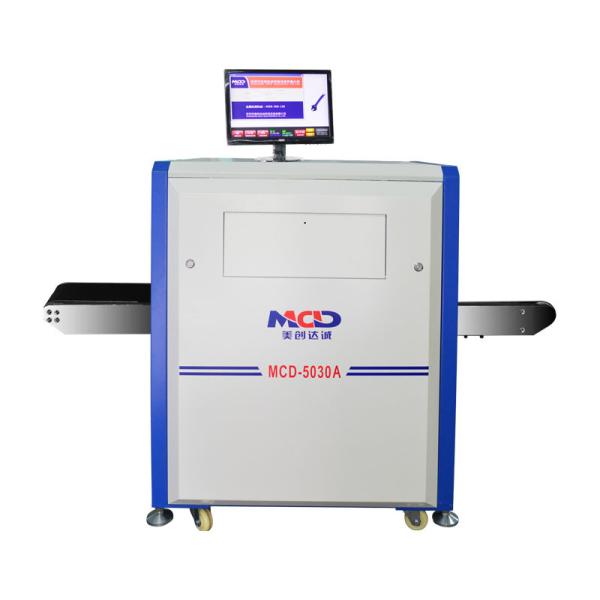

10mm Steel Penetration X Ray Luggage Scanner 5030A

Ask Lasest Price
Brand Name :	MCD
Model Number :	MCD-5030A
Certification :	ISO , CE
Price :	Negotiable
Payment Terms :	T/T , Western Union , L/C
Supply Ability :	300 set/month
Delivery Time :	Normally within 5 working days

Add to Cart

Product Details
Company Profile

10mm Steel Penetration X Ray Luggage Scanner 5030A

10mm Steel Penetration practical X Ray Luggage Scanner

Product Parameters:

General Specification

Tunnel Size	500(W)*300(H)mm
Conveyor Speed	0.22m/s
Conveyor Max Load	100kg
Dose per Inspection	<1.5 uGy/h
Resolution	<0.101mmMetal Wire
Spatial resolution Level	diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution	φ0.202mm
Penetration	10mm Steel
Film Safety	Guarantee ISO1600 Film
X-ray Leakage	0.05 uGy/h (at a distance of 5cmFrom external housing)

X-ray Generator
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 80Kv
4.Anode power: 0.4 to 0.5mA
5.Cooling / Duty Cycle: Oil Cooling /100%

Image System

X-ray Sensor	L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor	High Resolution Color, LCD Accord, 17 inch
Detector	1
Color display	less than 4 color
Image Processing	Edge enhancement, image strengthening, Image lightening, reducing darkening, image returning, image retrieval.
Image Grey Level	4096
Image Max Resolution	1024 * 1280 pixel
Image Processing	24bit for processing real time
Image storage	Storage 60000 pictures in real time
Zones & Zoom	1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Installation Data

1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)

2.Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)

3.Operation Power:220AVC/(±10)50Hz±3Hz

4.Power Consumption:1.0KW(Max),0.3KW(working)

5.Noise: <55 dB

Feature and Application:

X-rays through inspection,Which show object interior metal structure by LCD screen.Applied

to factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security

The tunnel is foldable . (Optional ) More ocnvenient to send it out or keep it in warehouse . Save shipping fee .
