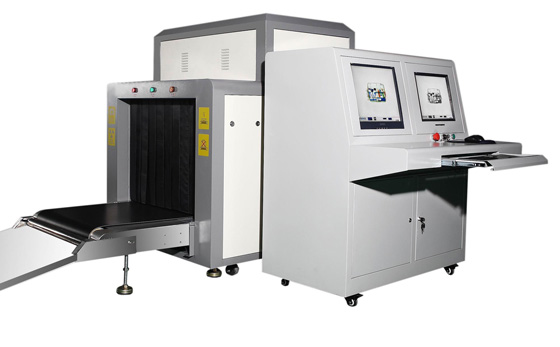

High Performance X Ray Baggage Scanner
Description:
X-ray penetrate inspection, the object can be found within the
metal structure, can display the naked eye
can not see where the liquid is also very obvious object display.
Used in the factory testing of security
products and business units such as: electronic factories, shoe
factories, toy factories, courts, railway
stations, and event bag, line security management package.
Parameter :
| Tunnel Size | 800(W)*650(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 200kg |
| Dose per Inspection | <1.6 μGy/h |
| Resolution | < 0.0787mm Copper Wire |
| Spatial resolution Level | dia1.3mm |
| Vertical | dia1.0mm |
| Penetrate resolution | dia 0.511mm |
| Penetration | 40mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.1 μGy/h (at a distance of 5cm From external housing) |
X-Ray generator:
Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System
| X-ray Sensor | L-Shaped Photodiode Array (monoenergetic) , 12bit Deep |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
| Detector | 2 |
| Color display | full color |
| Image Processing | Edge enhancement, image strengthening, Image lightening, reducing darkening, image returning, image retrieval. |
| Image Grey Level | 4096 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24bit for processing real time |
| Image storage | Storage 60000 pictures in real time |
| Zones & Zoom | 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation |
| Multi-energeti distinguish objects | organic objects in orange,inorganic objects in blue, mixture in green |
| High-energy/low energy | switch from high energy to low energy |
| Operation temperature/Humidity | 0°C-45°C/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20°C-60°C/20%-95%(non-condensing) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | 1.0 KW (max). |
| Noise: | <58db |
Applications:
- Commercial buildings
- Factories
- Courthouses
- Embassies
- Government buildings
- Military installations
- Prisons
- Hotels
- Schools
- Convention centers
- Security checkpoints
Competitive Advantage:
