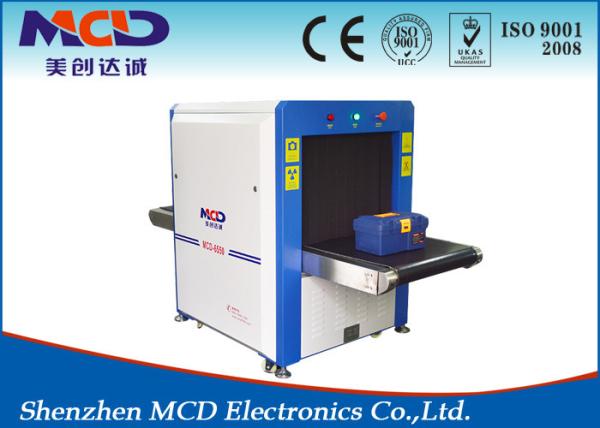

Security MCD -6550 X Ray Inspection Machine for Hotels / Bank / Gym

General Specification

• Tunnel Size: 650(W)*500(H)mm
• Conveyor Speed: 0.22m/s
• Conveyor Max Load: 170kg
• Dose per Inspection: <1.4uGy/h
• Resolution: <0.0787mmMetal Wire
• Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
• Penetrate resolution:Dia 0.254mm
• Penetration: 34mm Steel
• Film Safety: Guarantee ISO1600 Film
• X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)

X-ray Generator

• Generate direct: Upward
• Generate angle: 80 degree
• Anode Voltage: 100~160Kv
• Anode power: 0.4 to 1.2mA
• Cooling / Duty Cycle: Oil Cooling /100%

Image System

Installation Data

• Operating Temperature/Humidity: 0℃～45℃/20%-95%(non-condensing)
• Storage Temperature/Humidity: -26℃～60℃/20%-95%(non-condensing)
• Operation Power:220AVC/(±10)50Hz±3Hz
• Power Consumption:1.0KW(Max)
• Noise: ＜65 dB

Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye
can not see where the liquid is also very obvious object display.Used in the factory testing of security
products and business units such as: electronic factories, shoe factories, toy factories, courts, railway
stations, and event bag, line security management package.

Shenzhen MCD Electronics Co.,Ltd is a professional large-scale manufacturer of all kinds of metal detectors.integrating development and production together.our main products include hand held metal detector,walkthrough metal detector,under vehicle search mirror and related products.our company was established in 2005.and we have many years of history in security industry.Located near Shenzhen port.we enjoy convenient water,land and air transportation.

Our company employs more than 80 workers;through the efforts of our entire staff,we have become a big metal detector manufacturer.MCD people have continuously tried to improve product quality,introducing advanced technology.making our annual production capability is 3 million square meters of flooring.

Currently,MCD metal detector is already exported to Europe,Mid-East,North America and other countries and regions.our company has always focused on research,development and innovation,and has recently developed new auto-conveying metal detector.in 2009,we attained iso9000 management certification.

MCD will initiate the second phase of our development strategy.our company regards"reasonable prices,efficient production time and good after-sales service"as our tenet.we hope to cooperate with more customers for mutual development and benefits.
we welcome potential buyers to contact us.
