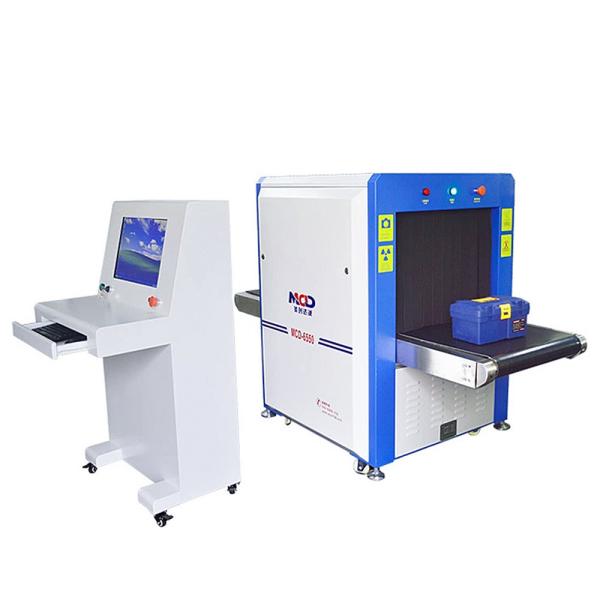

Muti Energy Color Airport Baggage X Ray Machines Luggage Dual View
Point
2017 New Product MCD6550D airport X ray luggage machine muti energy color X-ray baggage scanner with wholesale factory price and Dual View Point
Product Parameters
Image System
1. X-ray Sensor: Dual generator L-shaped photo-diode array(muti-energetic), 16bit
2. Muti-energy color: display organic material for orange, display
inorganic material for blue, display mixture for green, display unidentified objects for black.
3. Separate operation desk: Easy to view, maximum distance away from the machine is 2.5m, double monitor, High resolution color, LCD accord, 19 inch,
4. Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval.
5. Display previous 20 images and process any one of them.
Image Storage: Storage 200000 pictures in real time.
6. Magnifier: partial enlargement of images.
7. Double view stereo imaging
Brightness adjust: 0-100
Special advantages
1. Adopt digital image processing system.
2. Double generator, double view imaging.
3. Adopt dual Gigabit Ethernet port transmission technology to improve
the speed of information transmission.
Product features
1. Lower noise: <55db Power consumption: <0.65KW
2. HD images, clean background, edge sharpness, strong sense of 3D, real imaging surface is clean and realistic, using 24 real color images.
3. Full-screen imaging without blind spots, image has no distortion.
4. Tomography, multiple items in a big bag imaging don’t overlap, double view imaging is clear for security check.
General specification
1.Tunnel Size: 650(W)*500(H)mm
2.Conveyor Speed: 0.2m/s (adjustable)
3.Conveyor Max Load: 200kg
4.Dose Per Inspection: <2uGy
5.Resolution: <0.1mm metal wire
6.Penetration: 34mm Steel
7.Film Safety: Guarantee ISO1600 Film
8.X-ray Leakage: <0.5 uGy/h (at a distance of 5cm from external housing)
X-ray Generator
Generate Direct: Upward and sideward
Anode Voltage: 160Kv (80-170Kv adjustable)
Anode Power: 1.0 mA (0.2-1.25mA adjustable)
Company Information
Established in 2005
*With more than 300 people, among of which R&D 15 staffs, QC 22
people
*Main products: X-Ray Luggage Scanner, Hand-held Metal Detector, Food Metal Detector, Underground Metal
Detector, Under Vehicle Search System, Walk-through Metal Detector.
*Main market: Africa, South America, East Europe, Southeast Asia,
Middle East etc.
*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP
*Area: 12,000 Square meters
Our-Certificate:
Deliver time : 7-20 days after confirming order, details delivery date should be decided by
production season and order quantities
Service: Warranty 1 year, there are professional staff to help deal the issue.
The package pictures: package with the wooden case
