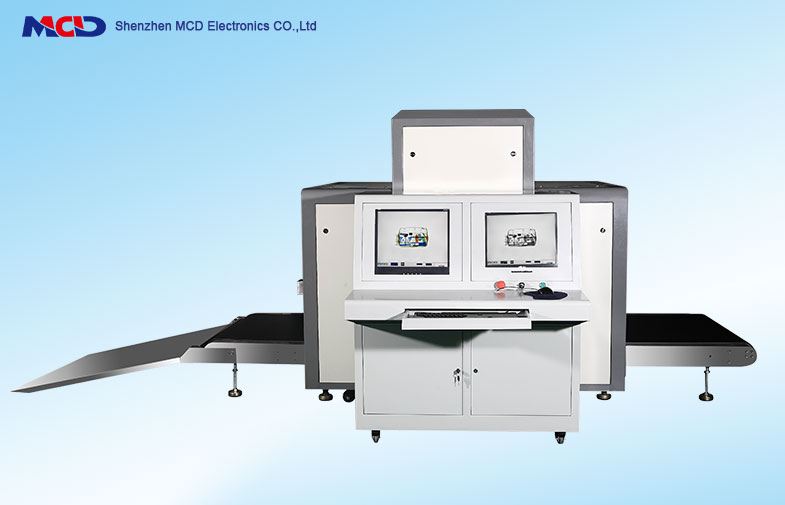

X-ray Baggage Inspection System For Airport Cargo Screening

General Specification of x-ray scanner equipment:

1. Tunnel Size: 1000(W)*800(H)mm
2. Conveyor Speed: 0.22m/s
3. Conveyor Max Load: 200kg
4. Dose per Inspection<1.7μGy/h
5. Resolution< 0.101mm Copper Wire
6. Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm
7. Penetrate resolution: Dia 0.511mm
8. Penetration: 40 mm Steel
9. Film Safety: Guarantee ISO1600 Film
10. X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator of x-ray scanner equipment

1. Generate direct: Downward
2. Generate anger: 80 degree
3. Anode Voltage: 100~160Kv
4. Anode power: 0.4 to 1.2mA
5. Cooling / Duty Cycle: Oil Cooling /100%

Image System of x-ray scanner equipment

1. X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
2. Monitor: High Resolution Color, LCD Accord, 17 inch
3. Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
4. Image Grey Level: 4096
5. Image Max Resolution: 1024 * 1280pixel
6. Image Processing: 24bit for processing real time
7. Image storage: Storage 60000 pictures in real time
8. Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
9. Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
10. High-energy/low energy : switch from high energy to low energy
11. Assist to detect drug and explosive powder

Installation Data of x-ray scanner equipment

1. Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
2. Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)
3. Operation Power: 220VAC(±10%)50±3Hz
4. Power Consumption: 1.0 KW (max), 1.0KW(working)
5. Noise: <58db

Shenzhen MCD Electronics Co.,Ltd is a professional large-scale manufacturer of all kinds of metal detectors.integrating development and production together.our main products include hand held metal detector,walkthrough metal detector,under vehicle search mirror and related products.our company was established in 2005.and we have many years of history in security industry.Located near Shenzhen port.we enjoy convenient water,land and air transportation.

Our company employs more than 80 workers;through the efforts of our entire staff,we have become a big metal detector manufacturer.MCD people have continuously tried to improve product quality,introducing advanced technology.making our annual production capability is 3 million square meters of flooring.

Currently,MCD metal detector is already exported to Europe,Mid-East,North America and other countries and regions.our company has always focused on research,development and innovation,and has recently developed new auto-conveying metal detector.in 2009,we attained iso9000 management certification.

MCD will initiate the second phase of our development strategy.our company regards"reasonable prices,efficient production time and good after-sales service"as our tenet.we hope to cooperate with more customers for mutual development and benefits.
we welcome potential buyers to contact us.
